Not sure if these are on the web anywhere? Managed to find the service manual but not the user guide.
Some photos thanks to seller in this thread - https://www.tatung-forum.co.uk/viewtopi ... t=106#p853

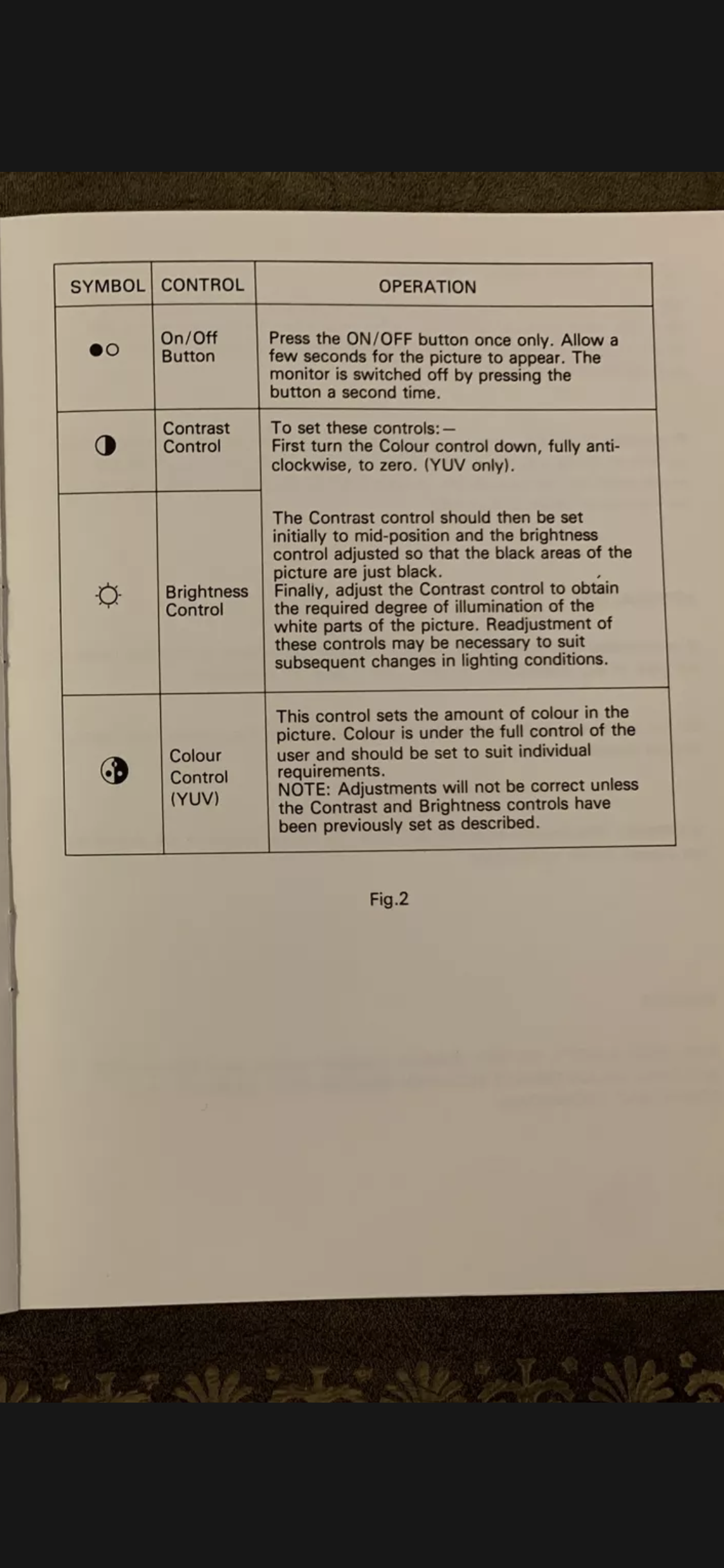

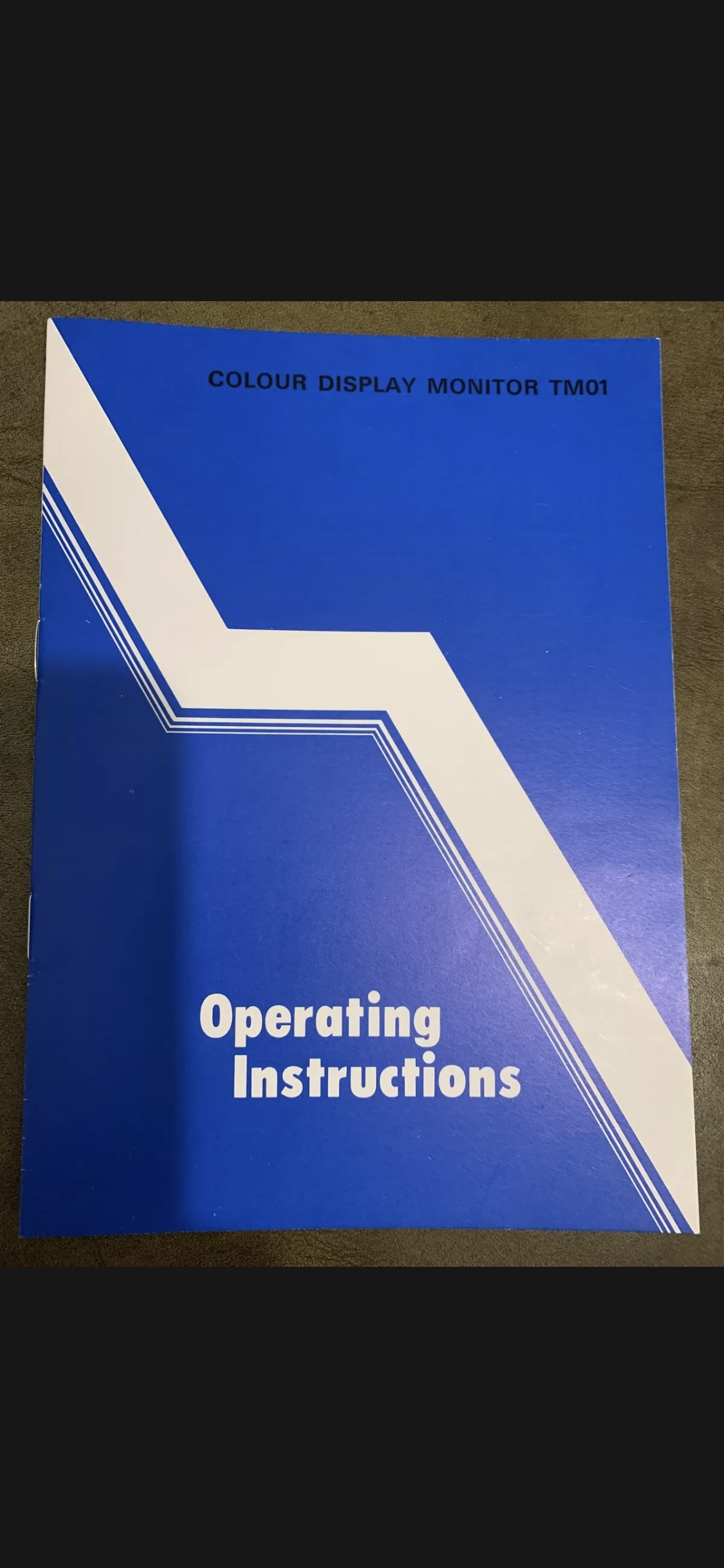

Some of the TM01 operating instructions
-
Lardo Boffin
- Posts: 302
- Joined: Thu Oct 24, 2019 11:47 am
Some of the TM01 operating instructions
- Attachments
-
- 5A05B205-1B67-455B-9E21-81BB833DFA68.png (3.57 MiB) Viewed 19131 times
-
- 8DD44F6B-7CFA-4715-9866-05B0A5C6DDE9.jpeg (364.59 KiB) Viewed 19131 times
-
- 3CBEF07D-32E2-4110-BF20-4A8876FE05ED.png (3.22 MiB) Viewed 19131 times
Last edited by Lardo Boffin on Tue Jan 18, 2022 8:21 pm, edited 1 time in total.
TC-01 + einSDein + TM-01 + TK-02 + gotek
-
Lardo Boffin
- Posts: 302
- Joined: Thu Oct 24, 2019 11:47 am
Re: Some of the TM01 user manual

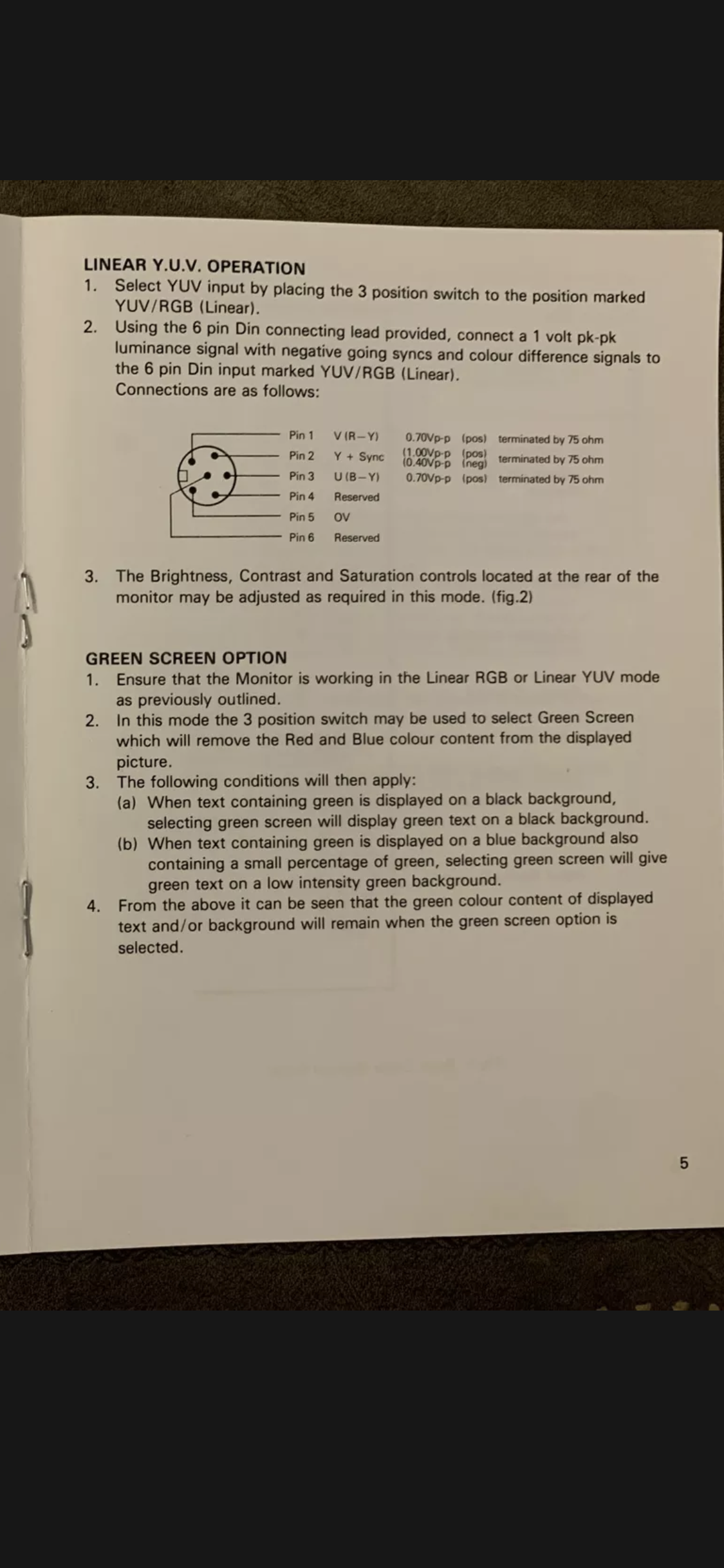

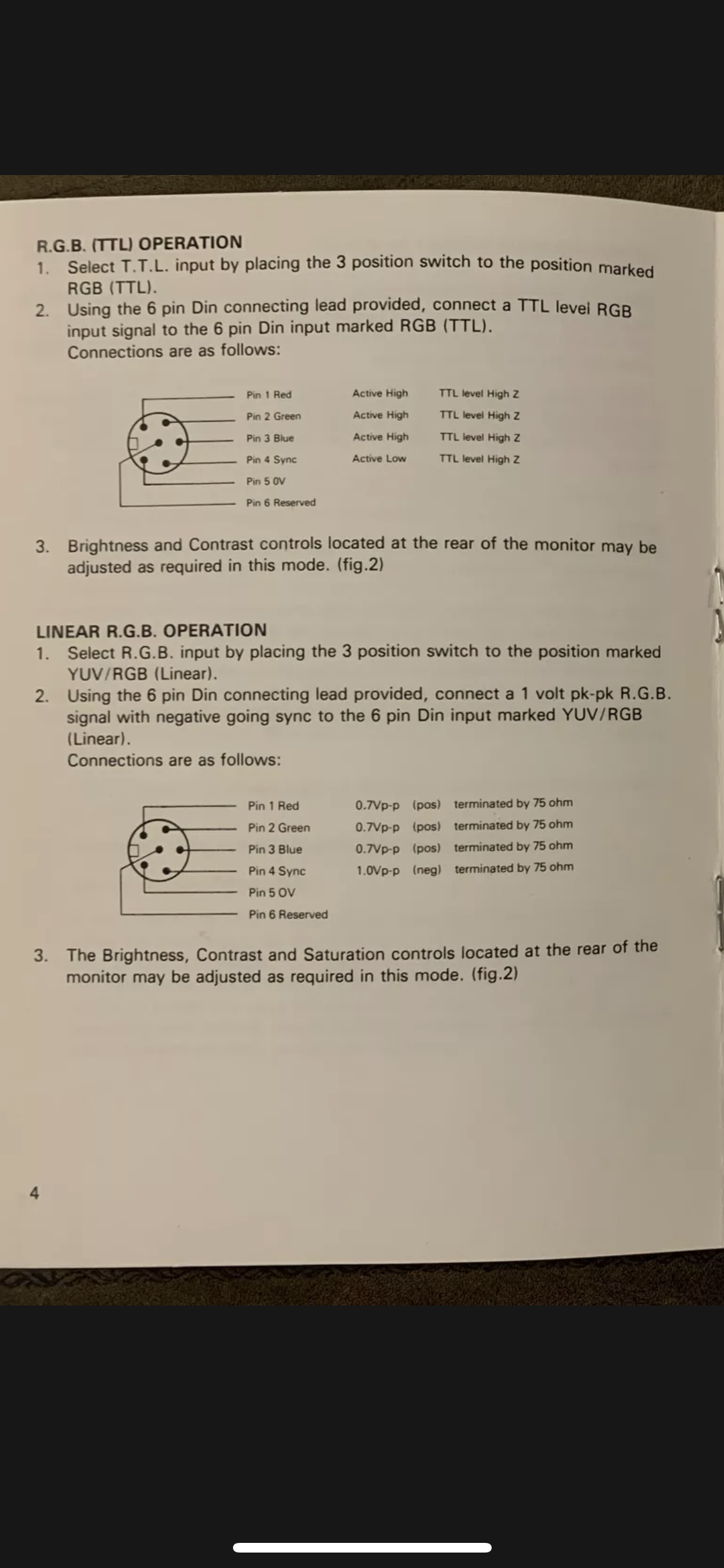

More:
- Attachments
-
- 74DFBA8B-C6D1-4269-8B33-02848051CFB7.png (1.87 MiB) Viewed 19130 times
-
- D43D6DFD-1D8D-4D50-8C4D-463023AA602C.png (2.9 MiB) Viewed 19130 times
-
- 45D6AE47-D459-4CB3-A926-21F735B58B76.png (2.39 MiB) Viewed 19130 times
TC-01 + einSDein + TM-01 + TK-02 + gotek
-
Lardo Boffin
- Posts: 302
- Joined: Thu Oct 24, 2019 11:47 am
Re: Some of the TM01 user manual

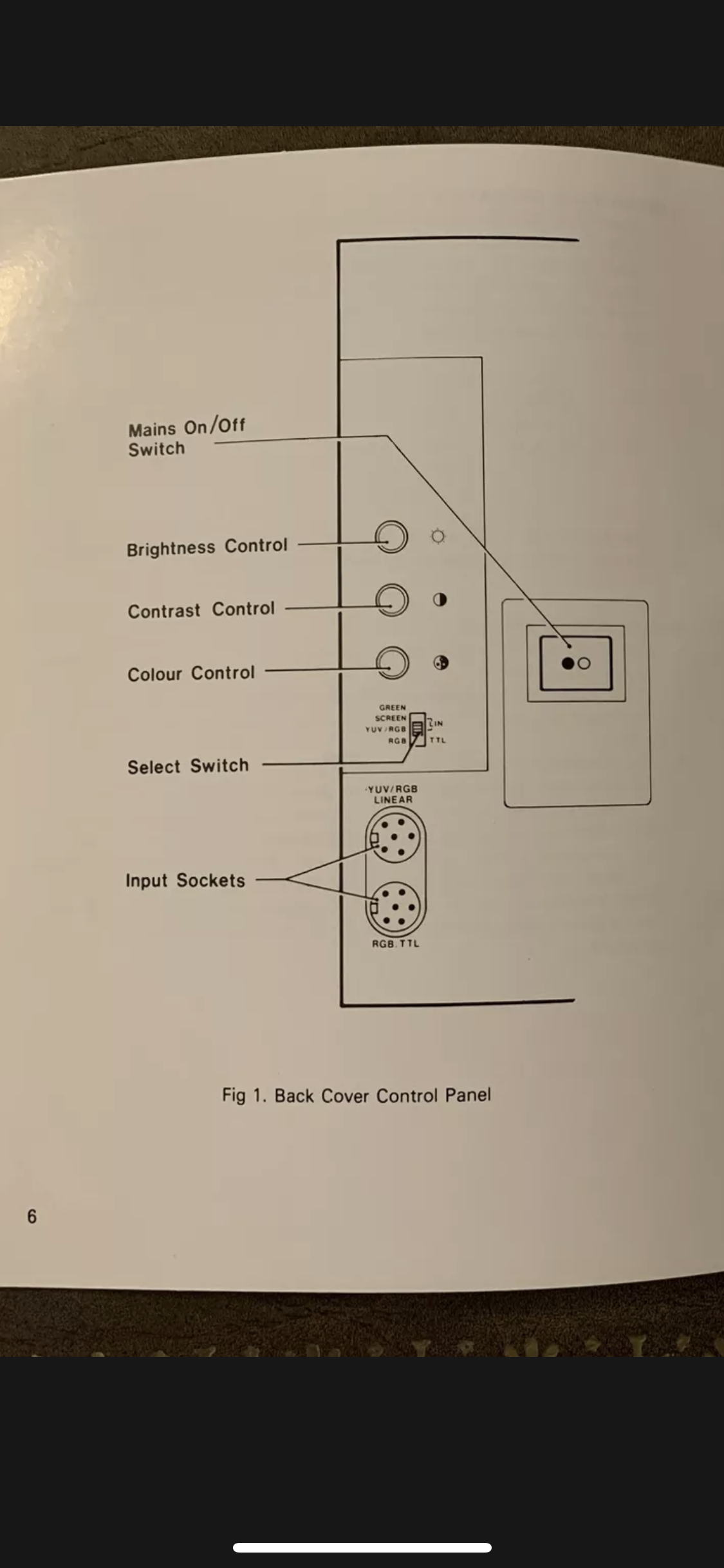

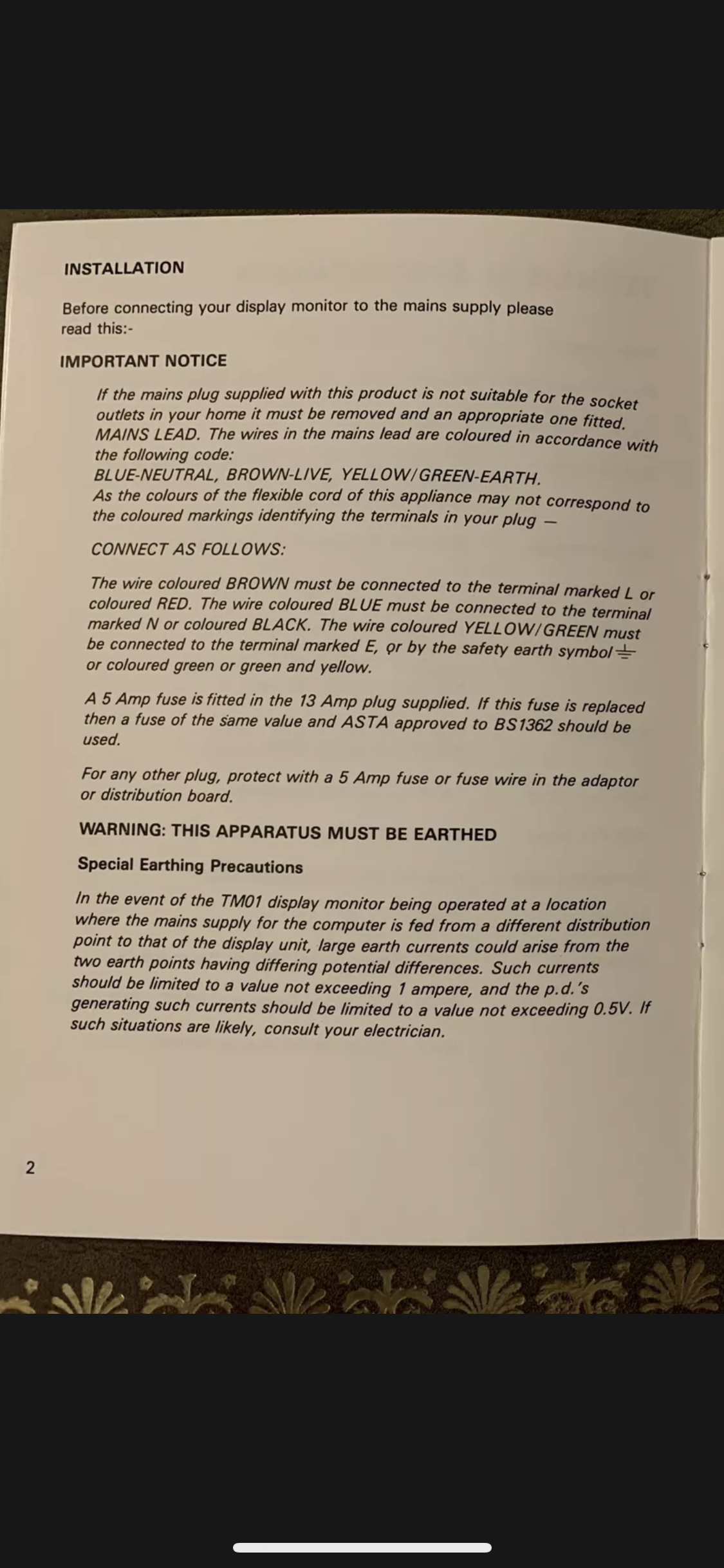

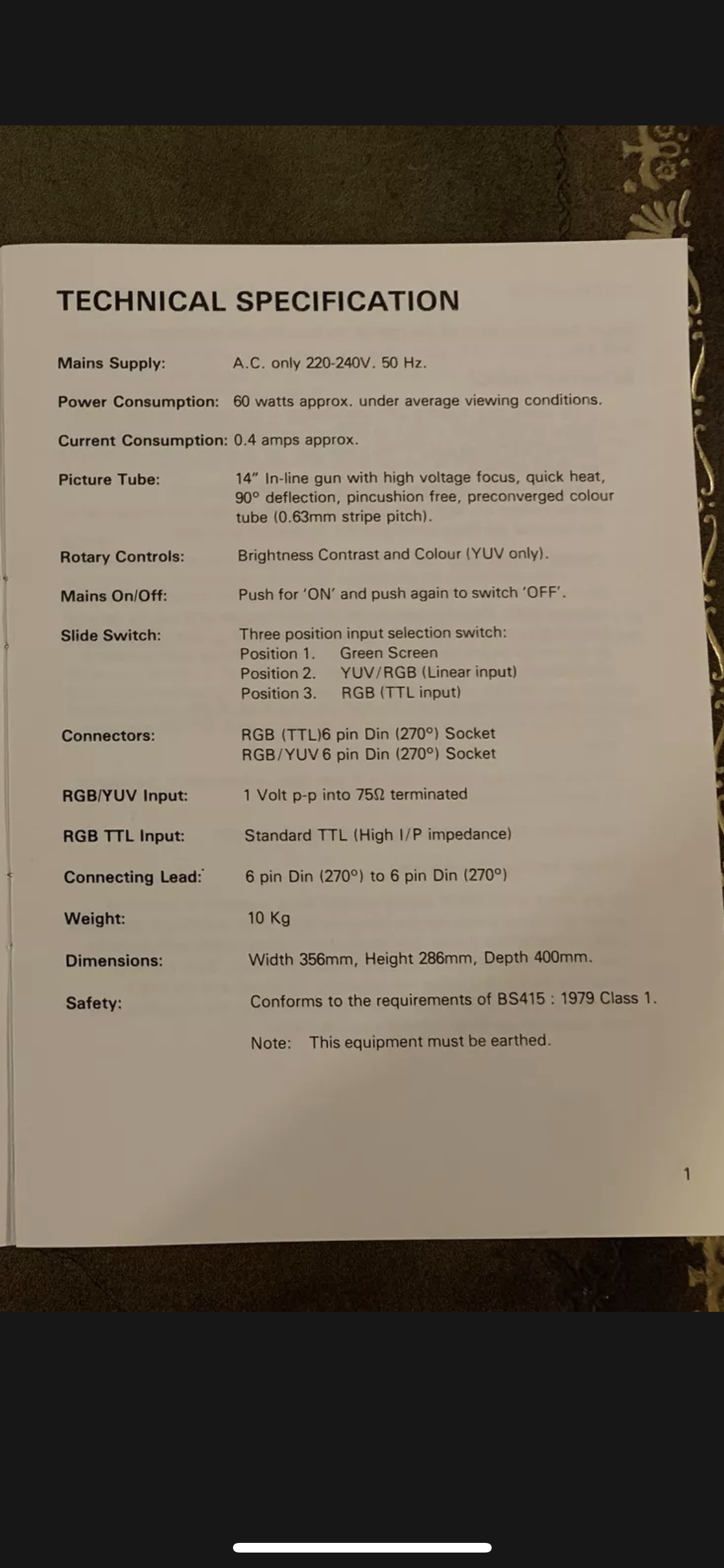

Finally:
- Attachments
-
- 284B7869-EA69-4B1C-8B2B-A81591F6E7FA.png (3.12 MiB) Viewed 19130 times
TC-01 + einSDein + TM-01 + TK-02 + gotek
-
MikeDHalliday
- Posts: 229
- Joined: Fri Oct 25, 2019 9:52 am
- Location: Crewe
- Contact:
Re: Some of the TM01 user manual
Ex owner of a real TC01 with Gotek boot drive and second drive, Joysticks, DAC hardware (Built but untested) and loads of manuals, books and mags. Living the emulation life now!
-
Lardo Boffin
- Posts: 302
- Joined: Thu Oct 24, 2019 11:47 am
Re: Some of the TM01 operating instructions
Thanks - the service manual is a bit above my pay-grade!
TC-01 + einSDein + TM-01 + TK-02 + gotek
-
MikeDHalliday
- Posts: 229
- Joined: Fri Oct 25, 2019 9:52 am
- Location: Crewe
- Contact:
Re: Some of the TM01 operating instructions
Yes, sorry, i realised after you replied that it is the service manual i have. Done a quick shufty in my Einstein library and I do not have the user guide manual so cannot scan a proper copy for the archive.
Ex owner of a real TC01 with Gotek boot drive and second drive, Joysticks, DAC hardware (Built but untested) and loads of manuals, books and mags. Living the emulation life now!
-
Lardo Boffin
- Posts: 302
- Joined: Thu Oct 24, 2019 11:47 am
Re: Some of the TM01 operating instructions
Just checked eBay and the Tatung has sold so no asking the seller for better photos now either. I think we got most of the pages.
TC-01 + einSDein + TM-01 + TK-02 + gotek
-
Lardo Boffin
- Posts: 302
- Joined: Thu Oct 24, 2019 11:47 am
Re: Some of the TM01 operating instructions
Looking at the images and the pages numbers vs. where the centre staples are I think only one page is missing right at the back.
I can only assume there was nothing much interesting on it otherwise it would not have been much effort to photo another page. A shame we don’t have it for completeness but at least we have all the important stuff.
I can only assume there was nothing much interesting on it otherwise it would not have been much effort to photo another page. A shame we don’t have it for completeness but at least we have all the important stuff.
TC-01 + einSDein + TM-01 + TK-02 + gotek
